APT100GF60JRD 600V 140A is a G E E C Fast IGBT™ series product, using non-punch through technology, with low voltage drop, high frequency switching, low tail current, ultra low leakage current, RBSOA and SCSOA.

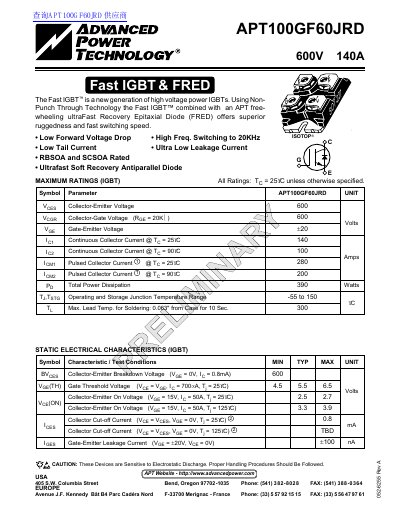

This document is a technical datasheet for the Advanced Power Technology APT100GF60JRD, which combines a Fast IGBT with an ultraFast Recovery Epitaxial Diode (FRED). The device utilizes Non-Punch Through Technology to offer superior ruggedness and fast switching speeds up to 20kHz.
The datasheet provides maximum ratings for both the IGBT and FRED components, including collector-emitter voltage of 600V and continuous collector current of 140A. It also lists static electrical characteristics such as breakdown voltages, on-voltages, and leakage currents, along with dynamic parameters like switching times and recovery charges.
| Total Power Dissipation | 390 Watts |
|---|---|
| Operating Junction Temperature Range | -55 to 150 °C |
The device supports a Collector-Emitter Voltage of 600 Volts and a Collector-Gate Voltage of 600 Volts.
The IGBT can handle a Continuous Collector Current of 140 Amps when the case temperature is 25°C.
The device operates within a Junction Temperature Range of -55 to 150 degrees Celsius.
