Advanced Power Technology APT100GF60JR Fast IGBT Datasheet

This document is about APT100GF60JR IGBT's technical parameters, including rated parameters, maximum parameters, static electrical parameters, etc.

Brand: Advanced
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 63 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: D6F5F952C4D48922AEF15AA0D01F6CD1
PDF: Advanced Power Technology APT100GF60JR Fast IGBT Datasheet PDF

About this manual

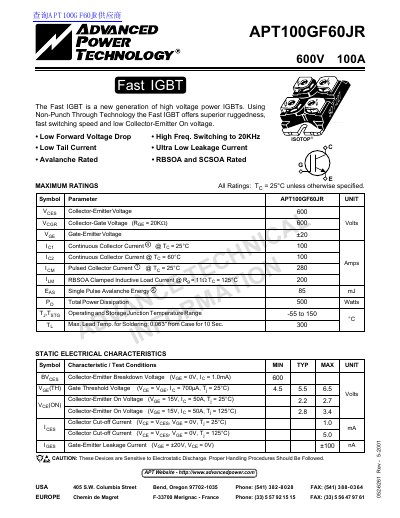

This document is a technical datasheet for the Advanced Power Technology APT100GF60JR Fast IGBT. It highlights the device's use of Non-Punch Through Technology to offer superior ruggedness, fast switching speeds up to 20kHz, and low collector-emitter on voltage. The document specifies that the device is avalanche rated and rated for RBSOA and SCSOA conditions.

What's inside

Maximum Ratings
Static Electrical Characteristics
Dynamic Characteristics
Thermal and Mechanical Characteristics
Package Dimensions

Specifications

Collector-Emitter Voltage	600 V

Frequently asked questions

What is the maximum operating junction temperature range?

The operating and storage junction temperature range is from -55 to 150 degrees Celsius.
