The document describes the features and characteristics of a product with model number APT10026JLL, including drain-source breakdown voltage, on-state drain current, drain-source on-state resistance, zero gate voltage drain current, etc.

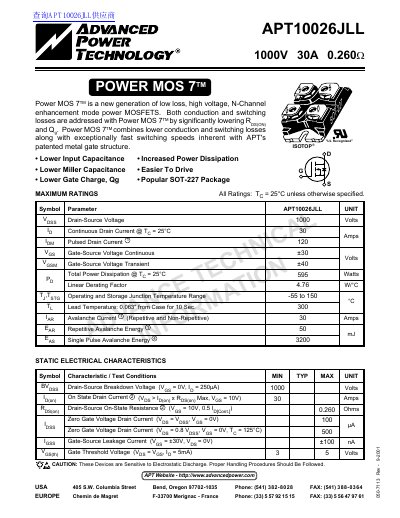

This document is a datasheet for the Advanced Power Technology APT10026JLL, a 1000V 30A N-Channel enhancement mode Power MOSFET. The device utilizes the company's Power MOS 7™ technology to achieve low conduction and switching losses with exceptionally fast switching speeds.
| Operating Junction Temperature Range | -55 to 150 C |
|---|---|
| Package Type | SOT-227 |
The device supports a continuous drain current of 30 Amps when the junction temperature is 25°C.
The APT10026JLL can dissipate up to 595 Watts when the case temperature is maintained at 25°C.
The device operates and stores within a junction temperature range of -55 to 150 C.
