This datasheet lists the characteristics of APT10035JFLL.

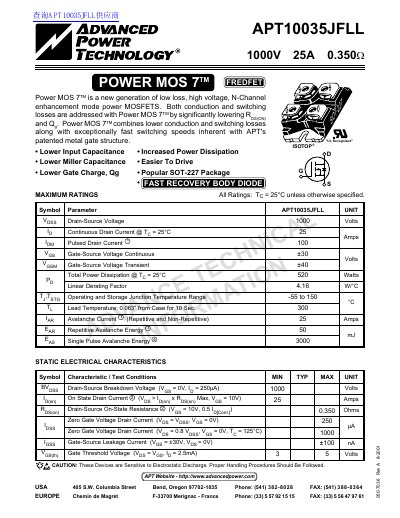

This document is a datasheet for the APT10035JFLL, a 1000V 25A N-Channel enhancement mode Power MOSFET. It utilizes Advanced Power Technology's Power MOS 7™ technology, which combines lower conduction and switching losses with exceptionally fast switching speeds.
| Continuous Drain Current | 25 Amps |
|---|---|
| Total Power Dissipation | 520 Watts |
| Operating Junction Temperature Range | -55 to 150 C |
| Drain-Source On-State Resistance | 0.350 Ohms |
| Package Type | SOT-227 |
The continuous drain current is 25 Amps at 25°C.
The device supports a continuous drain current of 25 Amps when the junction temperature is 25°C.
The APT10035JFLL has a maximum drain-source voltage rating of 1000 Volts.
The drain-source on-state resistance is typically 0.35 Ohms at a gate-source voltage of 10V.
