APT1004RCN is a high voltage power MOSFET with a maximum voltage of 1000V and a maximum current of 3.6A.

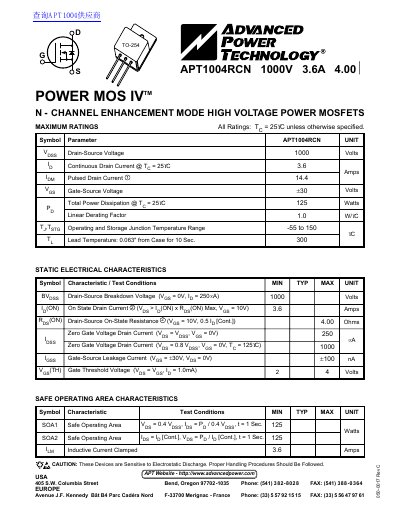

This document is a datasheet for the APT1004RCN, an N-channel enhancement mode high voltage power MOSFET. It provides comprehensive data on maximum ratings, static electrical characteristics, dynamic characteristics, and thermal properties.
| Drain-Source Voltage | 1000 V |
|---|---|
| Continuous Drain Current | 3.6 A |
| Package Type | STO-254 |
| Operating Junction Temperature Range | -55 to 150 °C |
The device supports a continuous drain current of 3.6 amps when the case temperature is maintained at 25°C.
The device can operate within a junction temperature range from -55°C to 150°C.
The maximum total power dissipation is rated at 125 watts when the case temperature is 25°C.
