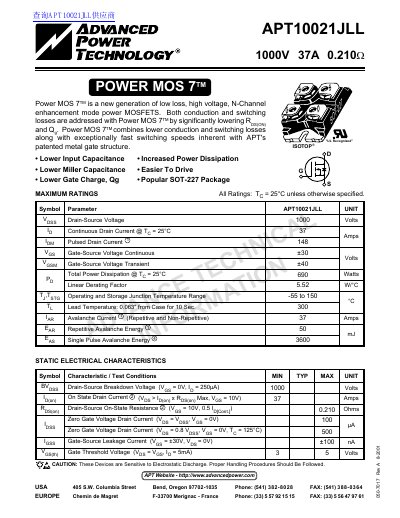

Advanced APT10021JLL Power MOSFET Datasheet

About this manual

This document is a datasheet for the Advanced APT10021JLL, a new generation of low loss, high voltage N-Channel enhancement mode Power MOSFETs. The device features a patented metal gate structure designed to lower conduction and switching losses while providing exceptionally fast switching speeds.

What's inside

• Maximum Ratings
• Static Electrical Characteristics
• Dynamic Characteristics
• Source-Drain Diode Ratings
• Thermal Characteristics
• Package Outline

Specifications

Frequently asked questions

What is the maximum continuous drain current for the APT10021JLL at 25°C?

The maximum continuous drain current is 37 Amps when the temperature is 25°C.

What is the maximum total power dissipation at a case temperature of 25°C?

The device can dissipate a maximum of 690 Watts at a case temperature of 25°C.

What is the operating and storage junction temperature range?

The operating and storage junction temperature range is from -55 to 150 C.
