FDPF190N15A N-Channel PowerTrench® MOSFET is a high performance MOSFET with low on-state resistance, low gate charge and low reverse recovery capacitance.

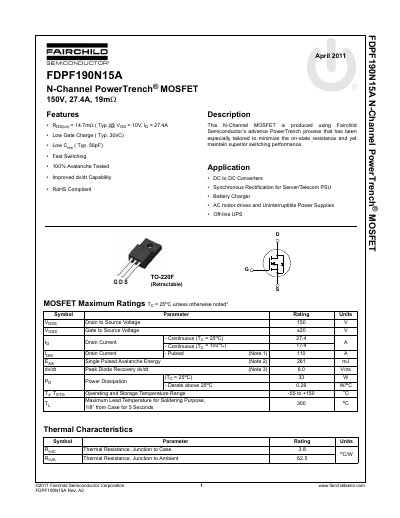

This document is a technical datasheet for the Fairchild Semiconductor FDPF190N15A, an N-Channel PowerTrench MOSFET rated at 150V and 27.4A continuous drain current. The device utilizes Fairchild's advanced PowerTrench process to minimize on-state resistance while maintaining superior switching performance.
The datasheet provides comprehensive electrical characteristics, including maximum ratings for voltage and current, thermal resistance values, and detailed capacitance and charge specifications. It also includes typical performance curves illustrating on-resistance variation with temperature, breakdown voltage versus temperature, and gate charge characteristics.
| Drain to Source Voltage | 150 V |
|---|---|
| Power Dissipation (Tc = 25°C) | 33 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 3.8 °C/W |
| Static Drain to Source On Resistance (Typ.) | 14.7 mΩ |
| Package Type | TO-220F (Retractable) |
Yes, the device is RoHS Compliant.
