FDPC8013S PowerTrench® Power Clip is a 30V Asymmetric Dual N-Channel MOSFET, which features low resistance, low parasitic inductance and easy to use

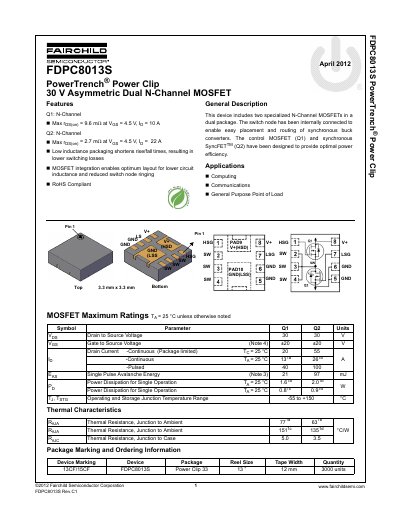

The document describes the Fairchild Semiconductor FDPC8013S, which integrates two specialized N-Channel MOSFETs (Q1 and Q2) into a single dual package. This design enables optimal layout for synchronous buck converters by internally connecting the switch node to facilitate easy placement and routing.
Key features include low inductance packaging that reduces switching losses and ringing, as well as RoHS compliance. The device is intended for applications in computing, communications, and general-purpose point-of-load power supplies.
| Drain to Source Voltage (Q1) | 30 V |
|---|---|
| Drain to Source Voltage (Q2) | 30 V |
| Continuous Drain Current (Package limited) Ta = 25°C | Q1: 20 A; Q2: 55 A |
| Continuous Drain Current (Package limited) Ta = 14°C | Q1: 13.14 A; Q2: 26.16 A |
| Pulsed Drain Current | Q1: 40 A; Q2: 100 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Ambient) Q1 | 77.8 °C/W |
| Thermal Resistance (Junction to Case) | Q1: 5.0 °C/W; Q2: 3.5 °C/W |
| Package Dimensions | Top 3.3 mm x 3.3mm Bottom |
The operating and storage junction temperature range is from -55 to +150 °C.
