FDPF045N10A is an N-Channel PowerTrench® MOSFET from Fairchild Semiconductor. It has a rated voltage of 100V and a maximum continuous current of 67A. The typical on-state resistance is 3.7mΩ.

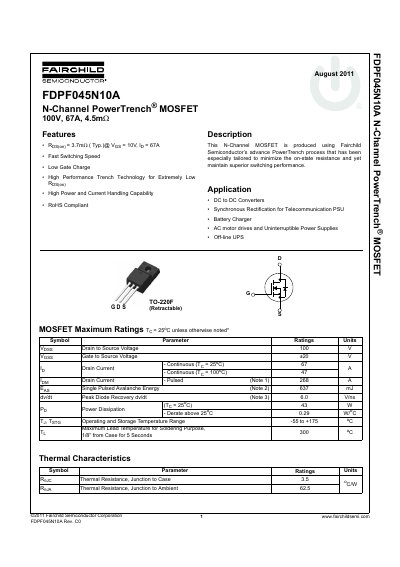

This document is a technical datasheet for the Fairchild Semiconductor FDPF045N10A, an N-Channel PowerTrench MOSFET. The device features a 100V drain-to-source voltage rating and a continuous drain current of 67A at 25°C. It utilizes Fairchild's PowerTrench process to achieve low on-state resistance while maintaining superior switching performance.
| Drain to Source Voltage (Vdss) | 100 V |
|---|---|
| Continuous Drain Current (Tg = 25°C) | 67 A |
| Power Dissipation (To = 25°C) | 4 W |
| Operating and Storage Temperature Range | -55 to+175 °C |
| Thermal Resistance, Junction to Case (Rjc) | 3.5 ocy/W |
The device is available in a TO-220F (Retractable) package.
Yes, the datasheet lists 'RoHS Compliant' under the Features section.
