FDPC8011S PowerTrench® Power Clip is a 25V Asymmetric Dual N-Channel MOSFET. It features low on-resistance, integrated complementary switch nodes, and easy routing. It can be used in computing, communications, and general purpose power applications.

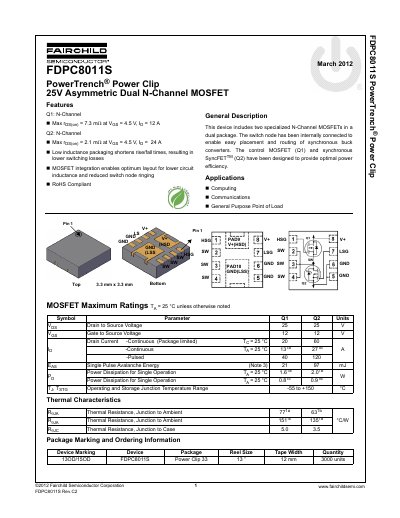

The document describes the Fairchild Semiconductor FDPC8011S, an asymmetric dual N-Channel MOSFET integrated into a specialized Power Clip package. This device combines a general-purpose control MOSFET (Q1) and a high-current synchronous rectifier MOSFET (Q2) to optimize layout for lower inductance and reduced switch node ringing in power conversion circuits.
| Drain to Source Voltage (Q1) | 25 V |
|---|---|
| Continuous Drain Current (Package limited) (Q1) | 20 A |
| Continuous Drain Current (Package limited) (Q2) | 60 A |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case (Q1) | 5.0 °C/W |
| Thermal Resistance, Junction to Case (Q2) | 3.5 °C/W |
The maximum continuous drain current for Q2 is 60 A when the junction temperature is 25 °C.
The device operates and stores within a junction temperature range of -55 to +150 °C.
The thermal resistance from junction to ambient is 63 °C/W when mounted on a 1 in² pad of 2 oz copper.
