This is a document about the FDPF2710T 250V N-Channel PowerTrench MOSFET. The product is produced using Fairchild Semiconductor's advanced PowerTrench process, which is tailored to minimize on-state resistance while maintaining superior switching performance.

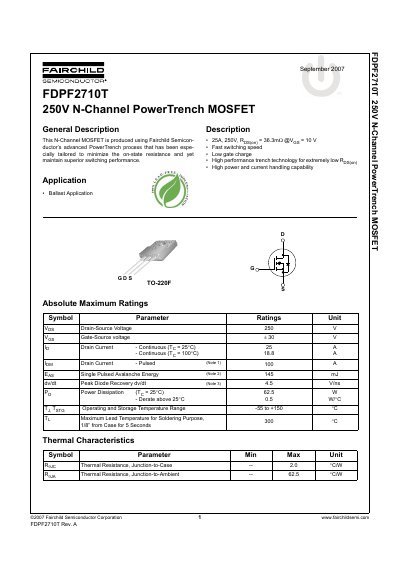

This document is a datasheet for the Fairchild FDPF2710T, an N-Channel MOSFET produced using the PowerTrench process. The device is designed to minimize on-state resistance while maintaining superior switching performance, suitable for applications such as ballasts.
| Drain-Source Voltage | 250 V |
|---|---|
| Drain Current - Continuous (Tg = 25°C) | 25 A |
| Drain Current - Pulsed | 100 A |
| Power Dissipation (Tg = 25°C) | 62.5 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction-to-Case | 2.0 °C/W |
| Package Type | TO-220F |
The operating and storage temperature range is from -55 to +150 °C.
