FDPF320N06L N-Channel PowerTrench® MOSFET, 60V, 21A, 25mΩ is a high-performance MOSFET produced by Fairchild Semiconductor. The product features low on-state resistance, low gate capacitance, low reverse recovery current, fast switching, 100% avalanche testing, improved dv/dt capability, and is widely used in DC to DC and other fields.

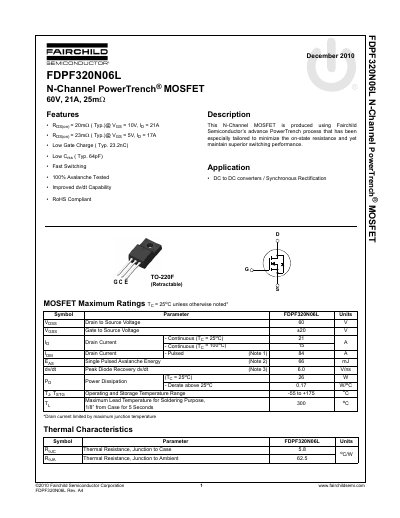

This document is a datasheet for the Fairchild FDPF320N06L, an N-Channel PowerTrench MOSFET designed for DC to DC converters and synchronous rectification applications. The device features a 60V drain-to-source voltage rating and a maximum continuous drain current of 21A at 25°C.
The datasheet provides comprehensive electrical characteristics, including off-state breakdown voltage, on-state resistance, and switching parameters. It also details thermal characteristics, maximum safe operating areas, and typical performance curves for resistance, capacitance, and breakdown voltage versus temperature.
| Drain to Source Voltage | 60 V |
|---|---|
| Power Dissipation (Tc = 25°C) | 26 W |
| Static Drain to Source On Resistance (Typ.) | 20 mΩ |
| Total Gate Charge (Typ.) | 23.2 nC |
| Thermal Resistance, Junction to Case | 5.8 °C/W |
| Operating and Storage Temperature Range | -55 to +175 °C |
The typical on-state resistance is 20mΩ at Vgs = 10V and Id = 21A.
It is recommended for use in DC to DC converters and synchronous rectification.
