This document describes the features and characteristics of the FDPF3860T N-Channel PowerTrench® MOSFET. It has low RDS(on), fast switching speed, low gate charge, and high power and current handling capability.

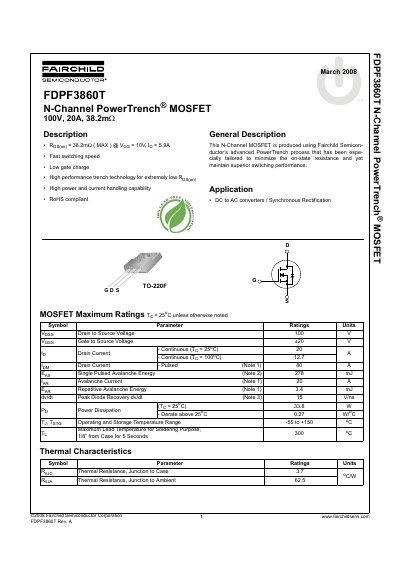

This document is a datasheet for the Fairchild FDPF3860T N-Channel PowerTrench MOSFET. The device is manufactured using Fairchild Semiconductor's advanced PowerTrench process, designed to minimize on-state resistance while maintaining superior switching performance. It is specifically tailored for applications such as DC-AC converters and synchronous rectification. This manual is written in Chinese.
| Drain to Source Voltage | 100 V |
|---|---|
| Drain Current - Continuous | 20A |
| Static Drain to Source On Resistance | 38.2 mΩ |
| Operating and Storage Temperature Range | -55 to +150oC |
| Package Type | TO-220F |
The maximum continuous drain current at TC = 25°C is 20A.
It is suitable for DC-AC converters and synchronous rectification applications.
