FDPF390N15A N-Channel PowerTrench® MOSFET is a high performance N-channel MOSFET device with low RDS(on), fast switching speed, low gate charge, etc. It is suitable for DC/DC converters and synchronous rectifiers.

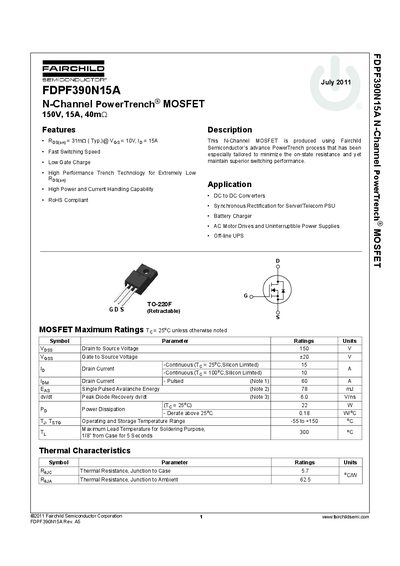

This document is a technical datasheet for the Fairchild Semiconductor FDPF390N15A, an N-Channel PowerTrench MOSFET. The device is designed with advanced trench technology to minimize on-state resistance while maintaining superior switching performance.
Key specifications include a drain-to-source voltage rating of 150V and a continuous drain current of 15A at 25°C. The datasheet provides detailed electrical characteristics, thermal data, and typical performance curves for applications such as DC-DC converters, synchronous rectification in server/telecom power supplies, battery chargers, AC motor drives, and uninterruptible power supplies (UPS).
| Drain to Source Voltage (V_DSS) | 150 V |
|---|---|
| Gate to Source Voltage (V_GSS) | +20 V |
| Continuous Drain Current (I_D) | 15 A |
| Pulsed Drain Current (I_DM) | 60 A |
| Power Dissipation (T_C = 25°C) | 22 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Case) | 5.7 °C/W |
| Static Drain to Source On Resistance | 40 mΩ (Typ.) |
| Package Type | TO-220F (Retractable) |
Yes, the datasheet explicitly states that the product is RoHS Compliant.
The device supports a maximum continuous drain current of 15 A when the temperature is 25°C.
The maximum power dissipation rating for this MOSFET is 22 W at a temperature of 25°C.
This component can operate and be stored within a temperature range from -55 to +150 °C.
