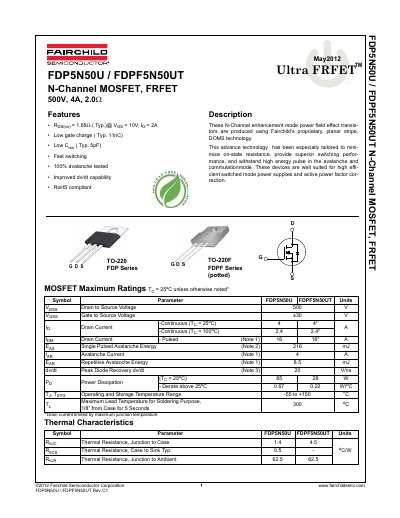

Fairchild FDP5N50U/FDPF5N50UT N-Channel MOSFET Datasheet

FDP5N50U / FDPF5N50UT N-Channel MOSFET, FRFET is a N-channel enhancement mode power field effect transistor produced by Fairchild Semiconductor Corporation. Its features are RDS(on) = 1.65Ω ( Typ.)@ VGS = 10V, ID = 2A, low gate charge ( Typ. 11nC), low Crss ( Typ. 5pF), fast switching, 100% avalanche tested, improved dv/dt capability and RoHS compliant.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 387 KB
Published: 11 July, 2012
Updated: 30 September, 2023
Model: FDP5N50
MD5 checksum: 9733A0D68D710005E611025C40E6C325
PDF: Fairchild FDP5N50U/FDPF5N50UT N-Channel MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild FDP5N50U and FDPF5N50UT N-Channel MOSFETs, which utilize the proprietary Ultra FRFET™ technology. These devices are designed for high-efficiency switched mode power supplies and active power factor correction applications.

What's inside

Features
Description
Maximum Ratings
Thermal Characteristics
Package Marking
Electrical Characteristics
Typical Performance Characteristics
Test Circuits
Package Dimensions

Frequently asked questions

Is the device RoHS compliant?

Yes, the device is RoHS compliant.

What is the operating and storage temperature range?

The operating and storage temperature range is from -55 to +150 °C.
