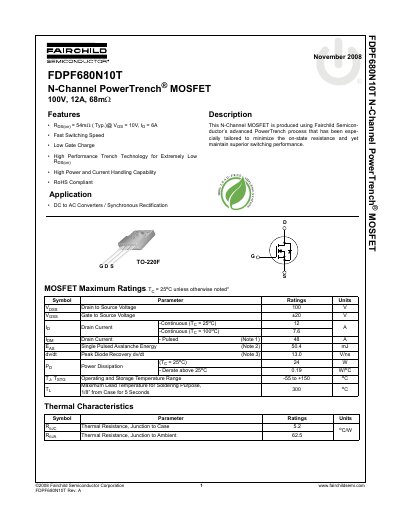

The FDPF680N10T is an N-channel PowerTrench® MOSFET with a drain-to-source voltage of 100V, a drain current of 12A, and an on-state resistance of 68mΩ. It features fast switching speed, low gate charge, and high-performance trench technology for extremely low on-state resistance. It has high power and current handling capability and is suitable for DC to AC converters/synchronous rectification.
The document describes the Fairchild FDPF680N10T, an N-Channel MOSFET produced using advanced PowerTrench technology. Key features include extremely low on-state resistance (Rds(on) = 54mQ typical), fast switching speed, and high power handling capability suitable for DC to AC converters and synchronous rectification applications.
The datasheet provides comprehensive electrical characteristics, including maximum ratings such as a drain-to-source voltage of 100V and continuous drain current of 12A. It also details thermal resistance values, capacitance parameters, switching times, and mechanical dimensions for the TO-220F package.
| Drain to Source Voltage (Vdss) | 100 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 12 A |
| On-Resistance (Typical) | 54 mΩ |
| Operating Temperature Range | -55 to +150 °C |
The maximum power dissipation is rated at 24 W for a case temperature of 25°C.
The device operates and can be stored in a temperature range from -55 to +150 °C.
