FDD6760A is a N-channel PowerTrench® MOSFET manufactured by Fairchild Semiconductor Corporation. It features low gate charge, low rDS(on) and fast switching speed. It is suitable for Vcore DC-DC converters for desktop computers and servers and VRM for Intermediate Bus Architecture.

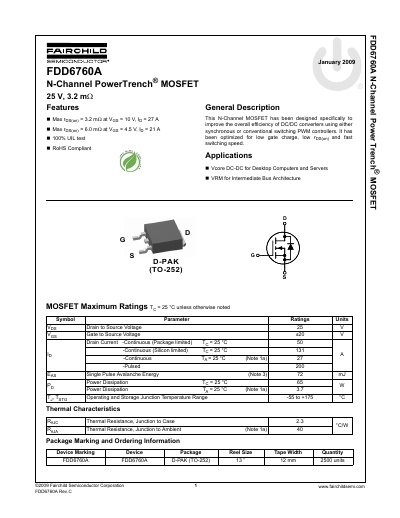

This document is a datasheet for the Fairchild Semiconductor FDD6760A, an N-Channel Power Trench MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. The device is optimized for low gate charge, low on-resistance, and fast switching speed, making it suitable for Vcore DC-DC applications in desktop computers and servers, as well as VRM for intermediate bus architecture.
| Drain to Source Voltage | 25 V |
|---|---|
| Max rDS(on) at VGS = 10 V | 3.2 mΩ |
| Max rDS(on) at VGS = 4.5 V | 6.0 mΩ |
| Power Dissipation (TC = 25 °C) | 65 W |
| Operating Junction Temperature Range | -55 to +175 °C |
| Thermal Resistance, Junction to Case | 2.3 °C/W |
It is designed for Vcore DC-DC for Desktop Computers and Servers, and VRM for Intermediate Bus Architecture.
Yes, the device is RoHS Compliant.
The maximum continuous drain current is 50 A when package limited at TC = 25 °C.
