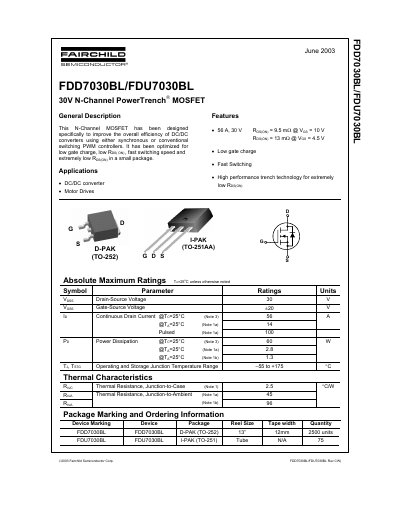

Fairchild FDD7030BL/FDU7030BL 30V N-Channel PowerTrench MOSFET Datasheet

FDD7030BL/FDU7030BL 30V N-Channel PowerTrench MOSFET is an N-Channel MOSFET with low gate charge, low RDS(ON), fast switching speed and extremely low RDS(ON), suitable for DC/DC converters and motor drives.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 127 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9216DB4C078A7F897CD45B9DC30E734B
PDF: Fairchild FDD7030BL/FDU7030BL 30V N-Channel PowerTrench MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild FDD7030BL and FDU7030BL, which are 30V N-Channel PowerTrench MOSFETs designed to improve the efficiency of DC/DC converters. The devices feature low gate charge, fast switching speed, and extremely low on-resistance in small I-PAK and D-PAK packages.

What's inside

General Description
Applications
Features
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Package Marking and Ordering Information
Trademarks
Disclaimer

Specifications

Drain-Source Voltage	30 V
On-Resistance (Vas=10V)	9.5 mΩ
On-Resistance (Ves=4.5V)	13 mΩ
Operating Junction Temperature Range	-55 to +175 °C
Input Capacitance	1425 pF
Turn-On Delay Time	20 ns

Frequently asked questions

What are the applications for this MOSFET?

The device is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

What is the on-resistance at 10V gate-source voltage?

The on-resistance is 9.5 mΩ when the gate-source voltage is 10 V.
