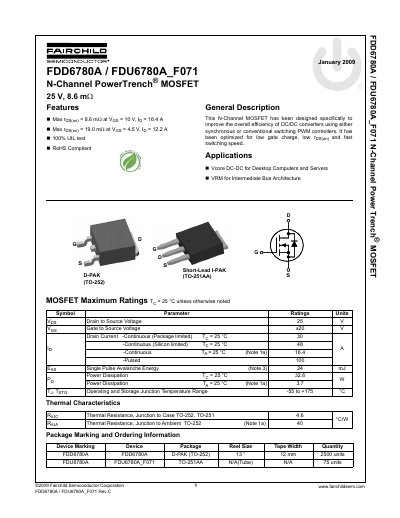

The FDD6780A / FDU6780A_F071 N-Channel PowerTrench® MOSFET is a 25 V, 8.6 mΩ MOSFET designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on) and fast switching speed.
The document describes the Fairchild FDD6780A and FDU6780A_F071, which are N-Channel PowerTrench MOSFETs designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. These devices feature low gate charge, low on-resistance, and fast switching speeds. They are available in Short-Lead I-PAK and D-PAK (TO-251AA) packages.
| Drain to Source Voltage | 25 V |
|---|---|
| Continuous Drain Current (Package limited) | 30 A |
| Continuous Drain Current (Silicon limited) | 48 A |
| Continuous Drain Current (Ta = 25°C) | 16.4 A |
| Power Dissipation (Tc = 25°C) | 32.6 W |
| Thermal Resistance Junction to Case | 4.6 °C/W |
| Operating Junction Temperature Range | -55 to +175 °C |
Yes, the document states that the product is RoHS Compliant.
The maximum single pulse avalanche energy is 24 mJ.
