FDD2582 is a N-Channel PowerTrench® MOSFET from Fairchild Semiconductor Corporation with a maximum voltage of 150V and a maximum current of 21A, with a typical on-resistance of 58mΩ.

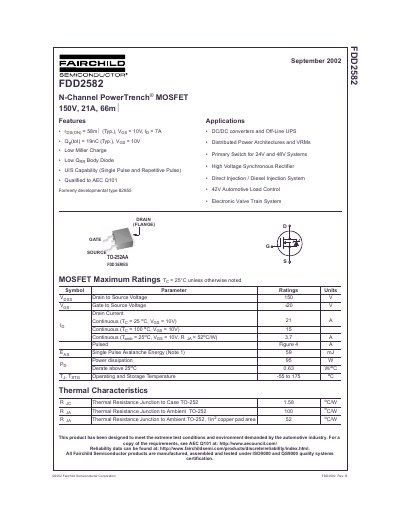

This document is a datasheet for the Fairchild Semiconductor FDD2582, an N-Channel PowerTrench MOSFET rated for 150V and 21A. The device features low on-resistance (66mΩ typical) and low Miller charge, making it suitable for high-efficiency switching applications.
The datasheet provides comprehensive electrical characteristics, including breakdown voltage, threshold voltage, and switching times. It also details thermal resistance values for the TO-252AA package and includes safe operating area graphs and typical performance curves under various conditions.
| Drain to Source Voltage | 150 V |
|---|---|
| Gate to Source Voltage | 420 V |
| Continuous Drain Current (Tj = 25°C) | 24 A |
| Continuous Drain Current (Tj = 100°C) | 15 A |
| Power Dissipation | 95 W |
| Thermal Resistance Junction to Case | 1.58 °C/W |
| Package Type | TO-252AA |
The maximum operating and storage temperature range is from -55°C to 175°C.
