This document is the English datasheet of FDD2670, which introduces the features of FDD2670, including rated voltage, rated current, switching speed, etc.

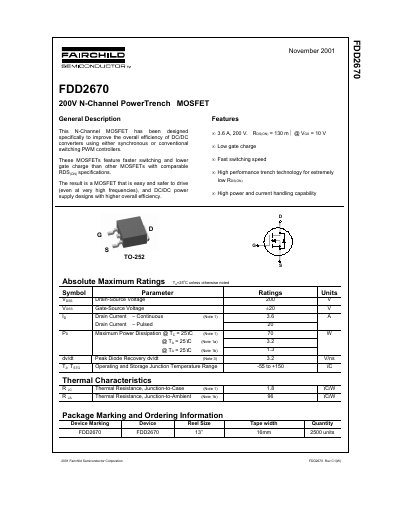

The document describes the Fairchild FDD2670, a 3.6 A, 200 V N-Channel PowerTrench MOSFET designed to improve efficiency in DC/DC converters using synchronous or conventional switching PWM controllers. Key features include fast switching speed, low gate charge, and high power handling capability.
| Continuous Drain Current | 3.6 A |
|---|---|
| Maximum Power Dissipation @ Ta = 25°C | 70 W |
| On-Resistance RDS(on) | 130 mΩ @ VGS = 10 V |
| Package Type | TO-252 |
The operating and storage junction temperature range is -55 to +150 °C.
The typical gate threshold voltage is 4 V when measured at a drain current of 250 µA.
