This product is a 100V N-Channel PowerTrench MOSFET with a maximum current of 34A and a maximum gate voltage of 20V. It features a fast switching speed, low gate charge, high power and current handling capability.

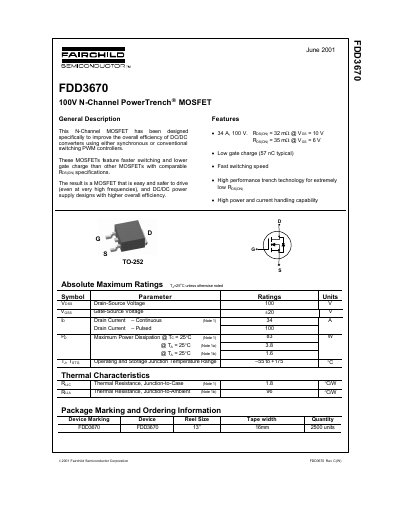

The document describes the Fairchild FDD3670, an N-Channel PowerTrench MOSFET specifically designed to enhance the overall efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Key features include a 100V drain-source voltage rating, 34A continuous drain current, and low gate charge for fast switching speeds.
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current | 34 A |
| Maximum Power Dissipation @ Tc=25°C | 83 W |
| Gate Charge (Typical) | 57 nC |
The FDD3670 is a 100 V N-Channel PowerTrench MOSFET.
The maximum continuous drain current is 34 A.
The device operates and stores within a junction temperature range of -55 to +175 °C.
