The MC100LVEL30 is a triple master-slave D flip flop with differential outputs. The MC100EL30 is pin and functionally equivalent to the MC100LVEL30 but is specified for operation at the standard 100E ECL voltage supply. Data enters the master latch when the clock input is LOW and transfers to the slave upon a positive transition on the clock input. In addition to a common Set input individual Reset inputs are provided for each flip flop. Both the Set and Reset inputs function asynchronously and overriding with respect to the clock inputs.

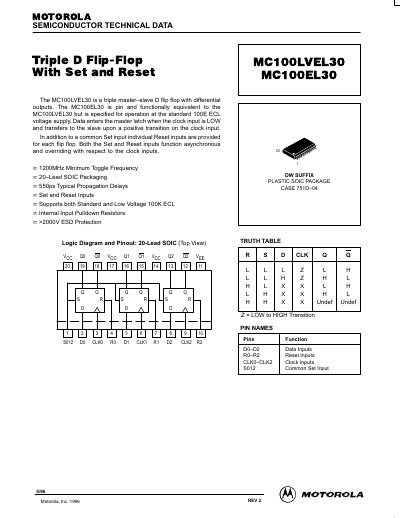

This document is a technical datasheet for the Motorola MC100LVEL30 and MC100EL30, which are triple master-slave D flip-flops featuring differential outputs. The MC100EL30 is specified for operation at the standard 100E ECL voltage supply, while the MC100LVEL30 supports both standard and low voltage 100K ECL. Both devices include individual reset inputs for each flip-flop and a common set input, with asynchronous set and reset functions that override the clock inputs.
| Maximum Toggle Frequency | 1200MHz Minimum |
|---|---|
| Package Type | 20-Lead SOIC |
| Typical Propagation Delay | 550ps |
| Supply Voltage (MC100EL30) | -4.2V to -5.5V |
| Supply Voltage (MC100LVEL30) | -3.0V to -3.8V |
| ESD Protection | >2000V |
