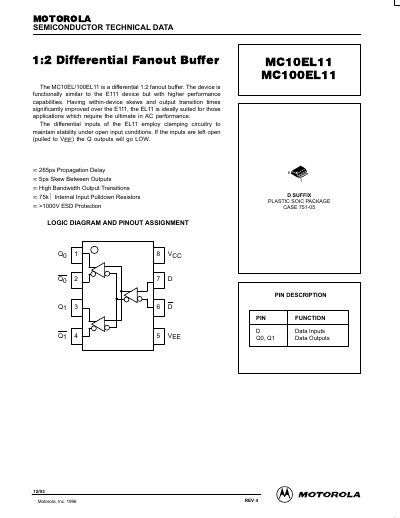

The MC10EL/100EL11 is a differential 1:2 fanout buffer. The device is functionally similar to the E111 device but with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111, the EL11 is ideally suited for those applications which require the ultimate in AC performance. The differential inputs of the EL11 employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open (pulled to VEE) the Q outputs will go LOW.
This document provides technical data for the MC10EL11 and MC100EL11 devices, which are differential 1:2 fanout buffers designed for high AC performance. The datasheet highlights features such as within-device skews of 5ps and output transition times significantly improved over previous E111 devices.
| Propagation Delay (Typical) | 265ps |
|---|---|
| Within-Device Skew | 5ps |
| Package Type | Plastic SOIC Package |
It is a differential 1:2 fanout buffer.
The device requires a minimum input swing of 150 mV for guaranteed AC parameters.
