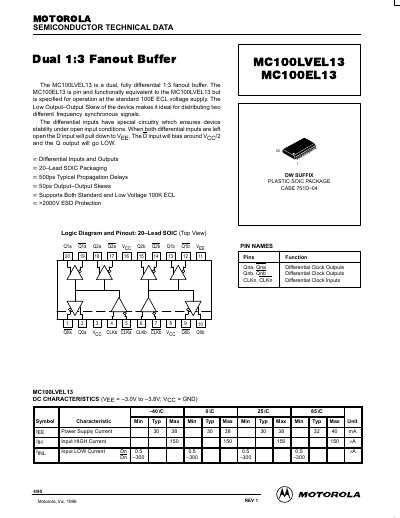

The MC100LVEL13 is a dual, fully differential 1:3 fanout buffer from Motorola. The MC100EL13 is pin and functionally equivalent to the MC100LVEL13 but is specified for operation at the standard 100E ECL voltage supply. The Low Output-Output Skew of the device makes it ideal for distributing two different frequency synchronous signals. The differential inputs have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to VEE, The D input will bias around VCC/2 and the Q output will go LOW. • Differential Inputs and Outputs • 20-Lead SOIC Packaging • 500ps Typical Propagation Delays • 50ps Output-Output Skews • Supports Both Standard and Low Voltage 100K ECL • >2000V ESD Protection.
The document describes the MC100EL13, a dual, fully differential 1:3 fanout buffer that is pin and functionally equivalent to the low-voltage version (MC100LVEL13). It is specified for operation at standard 100E ECL voltage supply levels. The device features special circuitry ensuring stability under open input conditions.
| Package Type | 20-Lead SOIC |
|---|---|
| Propagation Delay (Typ) | 500ps |
| Output-Output Skew | 50ps |
The MC100EL13 is a dual, fully differential 1:3 fanout buffer specified for operation at the standard 100E ECL voltage supply.
The typical propagation delay is 500ps.
The output-to-output skew is 50ps.
