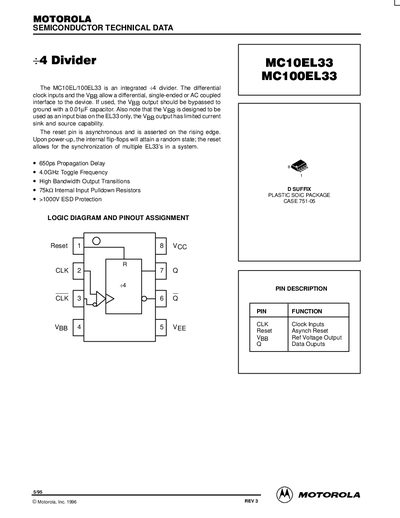

The MC10EL/100EL33 is an integrated ÷4 divider. It features a propagation delay of 650ps, a toggle frequency of 4.0GHz, and high bandwidth output transitions. The device also has 75kΩ internal input pulldown resistors and >1000V ESD protection.
The document describes the MC10EL/100EL33 as an integrated +4 divider with differential clock inputs. It supports differential, single-ended, or AC coupled interfaces to the device. The reset pin is asynchronous and asserted on the rising edge, allowing for the synchronization of multiple EL33s in a system.
| Propagation Delay (Typical) | 650ps |
|---|---|
| Toggle Frequency (Max) | 4.0GHz |
The reset pin is asynchronous and is asserted on the rising edge to synchronize multiple EL33s in a system.
If used, the VBB output should be bypassed to ground with a 0.01..F capacitor.
