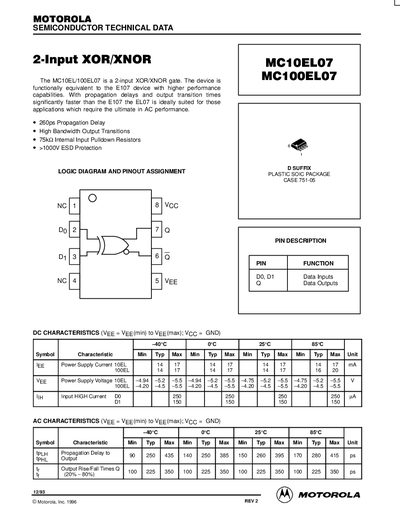

The MC10EL/100EL07 is a 2-input XOR/XNOR gate that is functionally equivalent to the E107 with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107 the EL07 is ideally suited for those applications which require the ultimate in AC performance.
The document describes the MC10EL/100EL07, a 2-input XOR/XNOR gate that is functionally equivalent to the E107 device but offers higher performance capabilities. Key features include a typical propagation delay of 260ps and high bandwidth output transitions, making it suitable for applications requiring ultimate AC performance.
| Propagation Delay (Typ) | 260 ps |
|---|---|
| Internal Input Pulldown Resistors | 75kΩ |
| ESD Protection | >1000V |
| Power Supply Current (Typ) | 17 mA |
It is a 2-input XOR/XNOR gate.
Yes, it is ideally suited for applications requiring ultimate AC performance due to fast propagation delays.
