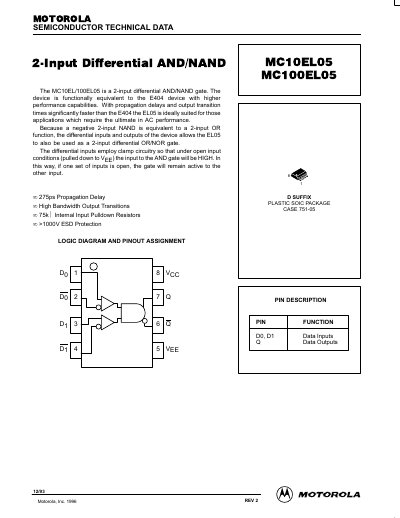

The MC10EL/100EL05 is a 2-input differential AND/NAND gate. The device is functionally equivalent to the E404 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E404, the EL05 is ideally suited for those applications which require the ultimate in AC performance. Because a negative 2-input NAND is equivalent to a 2-input OR function, the differential inputs and outputs of the device allows the EL05 to also be used as a 2-input differential OR/NOR gate. The differential inputs employ clamp circuitry so that under open input conditions (pulled down to VEE) the input to the AND gate will be HIGH. In this way, if one set of inputs is open, the gate will remain active to the other input.
The MC10EL05 and MC100EL05 are 2-input differential AND/NAND gates functionally equivalent to the E404 device but with significantly faster propagation delays and output transition times. These devices are ideally suited for applications requiring ultimate AC performance and can also function as 2-input differential OR/NOR gates due to their negative NAND equivalence.
| Propagation Delay | 275ps Typ |
|---|---|
| ESD Protection | >1000V |
| Power Supply Voltage Range | -4.75V to -5.5V |
| Package Type | Plastic SOIC |
The device is functionally equivalent to the E404 device.
Yes, because a negative 2-input NAND is equivalent to a 2-input OR function.
The gate will remain active to the other input due to clamp circuitry.
