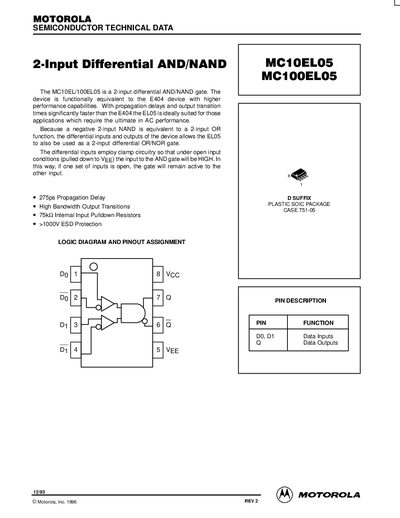

This datasheet provides the technical specifications of the MC10EL/100EL05.
The MC10EL05 and MC100EL05 are 2-input differential AND/NAND gates that are functionally equivalent to the E404 device but offer higher performance capabilities. These devices are ideally suited for applications requiring ultimate AC performance, with propagation delays as low as 275ps and output transition times significantly faster than the E404. Due to the equivalence of a negative 2-input NAND to a 2-input OR function, the differential inputs and outputs also allow the device to be used as a 2-input differential OR/NOR gate.
| Propagation Delay | 275ps Typ |
|---|---|
| ESD Protection | >1000V |
| Power Supply Current (Typ) | 22 mA |
| Package Type | Plastic SOIC |
It is a 2-input differential AND/NAND gate that is functionally equivalent to the E404 device.
Yes, because a negative 2-input NAND is equivalent to a 2-input OR function, the device allows the EL05 to also be used as a 2-input differential OR/NOR gate.
