The MC10EL/100EL31 is a D flip-flop with set and reset. It has high performance capabilities and is ideally suited for those applications which require the ultimate in AC performance.

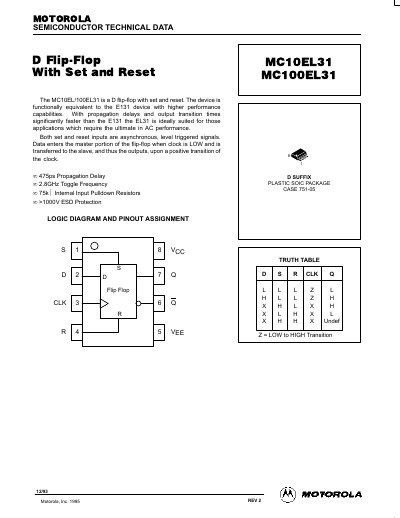

This document is a technical datasheet for the Motorola MC10EL31 and MC100EL31, which are D flip-flops with asynchronous set and reset inputs. The devices are functionally equivalent to the E131 but offer significantly faster propagation delays and output transition times, making them suitable for high-performance AC applications.
| Propagation Delay | 475ps |
|---|---|
| Toggle Frequency | 2.8GHz |
| Internal Input Pulldown Resistors | 75kQ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC |
The maximum toggle frequency is 2.8 GHz.
The minimum pulse width is 400 ps.
The maximum output rise time is 350 ps.
