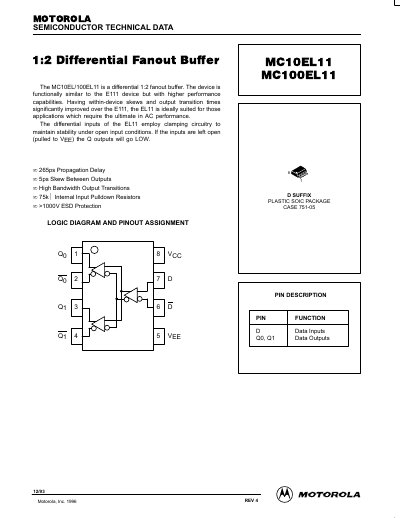

MC10EL/100EL11 is a differential 1:2 fanout buffer with 265ps propagation delay and 5ps skew between outputs.
The MC10EL11 and MC100EL11 are differential 1:2 fanout buffer devices designed for high-performance applications requiring ultimate AC capabilities. These devices feature improved within-device skews and output transition times compared to the E111 series, with differential inputs employing clamping circuitry to maintain stability under open input conditions.
| Propagation Delay (Typical) | 265 ps |
|---|---|
| Skew Between Outputs | 5 ps |
| Power Supply Current (Typical) | 26 mA |
| Power Supply Voltage (Max) | -5.5 V |
| Input HIGH Current | 150 nA |
| Package Type | Plastic SOIC |
It is a differential 1:2 fanout buffer.
The differential inputs employ clamping circuitry to maintain stability, causing Q outputs to go LOW if inputs are left open.
The maximum power supply voltage is -5.5 V.
