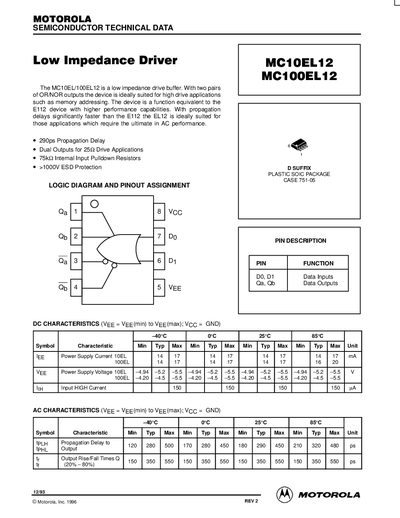

The MC10EL/100EL12 is a low impedance drive buffer. With two pairs of OR/NOR outputs the device is ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112 the EL12 is ideally suited for those applications which require the ultimate in AC performance.
The Motorola MC10EL12 is a low impedance drive buffer designed for high drive applications such as memory addressing. It features two pairs of OR/NOR outputs and is functionally equivalent to the E112 device but with significantly faster propagation delays and higher performance capabilities.
| Propagation Delay | 290ps Typ |
|---|---|
| Internal Pull-down Resistors | 75kQ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC |
The MC10EL12 is a low impedance drive buffer that is ideally suited for high drive applications such as memory addressing.
The typical propagation delay is 290ps.
