The MC10EL/100EL07 is a 2-input XOR/XNOR gate with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107 the EL07 is ideally suited for those applications which require the ultimate in AC performance.

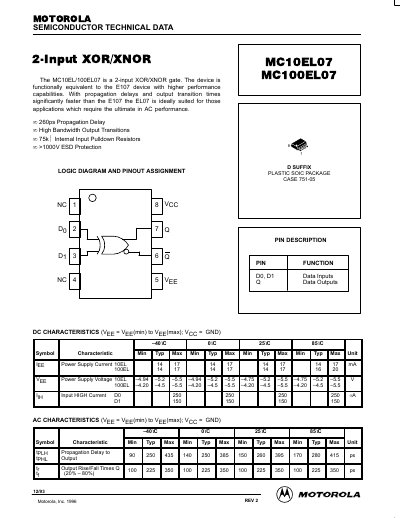

This document is a technical datasheet for the Motorola MC10EL07 and MC100EL07 devices. These are 2-input XOR/XNOR gates designed with higher performance capabilities than the E107 device, featuring propagation delays as low as 260ps and high bandwidth output transitions.
| Propagation Delay (Typ) | 260ps |
|---|---|
| Internal Input Pulldown Resistors | 75kΩ |
| ESD Protection | >1000V |
| Power Supply Voltage (Min) | -4.94 V |
The maximum propagation delay is 435 ps.
The voltage range is -4.20 V to -5.5 V.
The length is 6.20 mm and the width is 4.00 mm.
