10EL32 is a MC10EL/100EL32 series product, an integrated 1/2 divider, with 510ps propagation delay, 3.0GHz toggle frequency, high bandwidth output transitions, 75kΩ internal input pulldown resistors, >1000V ESD protection

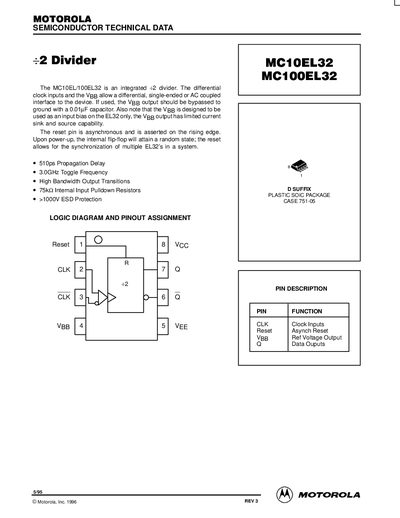

The document describes the MC10EL/100EL32 as an integrated +2 divider featuring differential clock inputs and a Vpp pin for AC or single-ended coupling. The device supports a maximum toggle frequency of 3.0 GHz with propagation delays ranging from 360 to 640 picoseconds depending on temperature.
| Propagation Delay (CLK to Q) | 360 ps |
|---|---|
| Package Type | Plastic SOIC Package |
The VBB output should be bypassed to ground with a 0.01 F capacitor.
