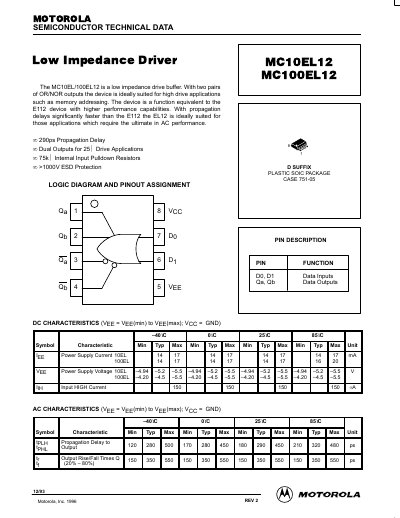

The MC10EL/100EL12 is a low impedance drive buffer with two pairs of OR/NOR outputs, ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112, the EL12 is ideally suited for applications that require the ultimate in AC performance. It features a propagation delay of 290ps, dual outputs for 25Ω drive applications, 75kΩ internal input pulldown resistors, and >1000V ESD protection.
The document describes the MC10EL/100EL12 as a low impedance drive buffer with two pairs of OR/NOR outputs. It is designed for high drive applications such as memory addressing and offers propagation delays significantly faster than the previous E112 device.
Key features include 75kΩ internal input pulldown resistors, >1000V ESD protection, and a plastic SOIC package (Case 751-05). The datasheet provides DC and AC characteristics tables along with outline dimensions for the component.
| Propagation Delay (Typical) | 290ps |
|---|---|
| Internal Input Pulldown Resistors | 75kΩ |
| ESD Protection | >1000V |
| Package Type | Plastic SOIC Package Case 751-05 |
It is a low impedance drive buffer ideally suited for high drive applications such as memory addressing.
It is functionally equivalent but offers significantly faster propagation delays.
