MC10EL/100EL07 is a 2-input XOR/XNOR gate with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107 the EL07 is ideally suited for those applications which require the ultimate in AC performance.

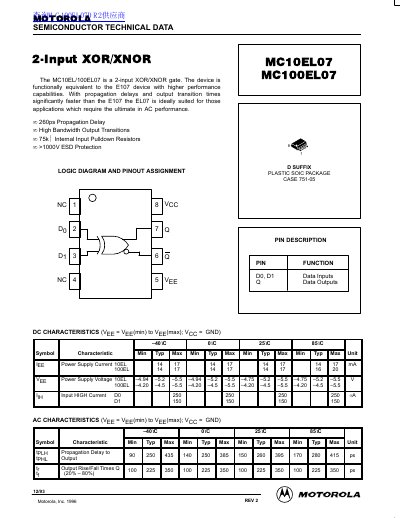

This document is a technical datasheet for the Motorola MC10EL07 and MC100EL07, which are 2-input XOR/XNOR logic gates. The devices are functionally equivalent to the E107 but offer higher performance capabilities, including significantly faster propagation delays and output transition times. They are designed for applications requiring ultimate AC performance.
| Propagation Delay | 260ps Typ |
|---|---|
| ESD Protection | >1000V |
| Package Type | Plastic SOIC |
It is a 2-input XOR/XNOR gate.
The typical propagation delay is 260ps.
