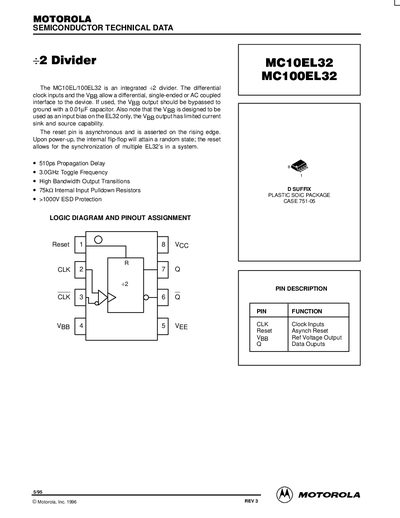

MC10EL/100EL32 is an integrated ÷2 divider, which has features such as 510ps Propagation Delay, 3.0GHz Toggle Frequency, High Bandwidth Output Transitions, 75kΩ Internal Input Pulldown Resistors, >1000V ESD Protection.
The MC10EL32 and MC100EL32 are integrated +2 divider devices featuring differential clock inputs and a Vpp pin that allows for differential, single-ended, or AC coupled interfaces. The device includes an asynchronous reset pin for synchronizing multiple units and operates with a typical propagation delay of 510ps and a toggle frequency up to 3.0GHz.
| Propagation Delay (Typ) | 510ps |
|---|---|
| Toggle Frequency (Max) | 3.0GHz |
| Package Type | PLASTIC SOIC PACKAGE |
| Internal Input Pulldown Resistors | 75kQ |
The Vpp is designed to be used as an input bias on the EL32 only.
The reset pin is asynchronous and is asserted on the rising edge.
