BG10-37/D07LA4 is a motor produced by MUSTER, with a rated power of 0.37kW, a speed of 103r/min and an output torque of 34.0Nm.

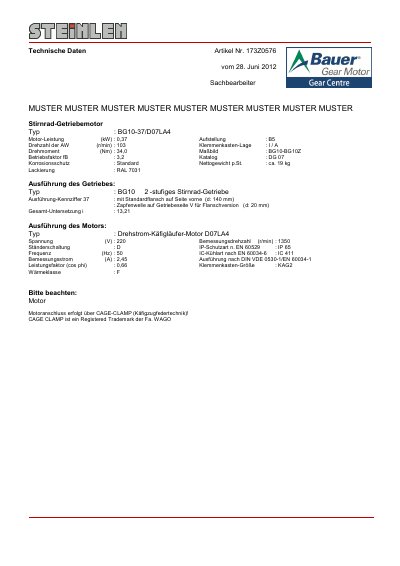

This document provides technical specifications for the Bauer BG10 series gear motor, specifically model BG10-37/D07LA4. It details the mechanical and electrical characteristics of the unit, including power rating, speed, torque, and protection class.
The motor is a two-stage spur gearbox equipped with a standard flange on the front side (diameter 140 mm) and a shaft for the flange version (diameter 20 mm). The drive motor is a three-phase cage induction motor rated at 10.37 kW. This manual is written in German.
| Rated Speed | 1350 r/min |
|---|---|
| Gearbox Type | 2-stage spur gearbox |
| Motor Type | Three-phase cage induction motor DO7LA4 |
| Protection Class | IP 65 |
| Net Weight | 19 kg |
