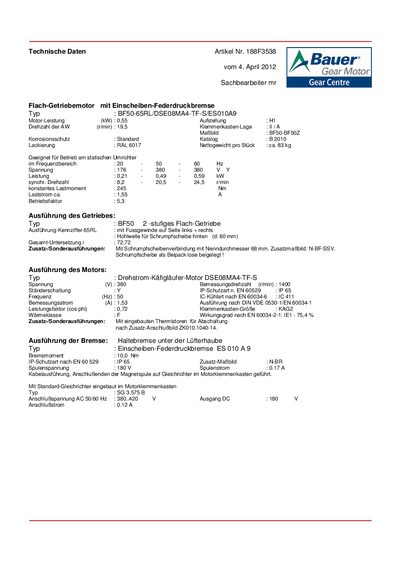

This document provides detailed information on the BF50-65RL/DSE08MA4-TF-S/ES010A9 motor, including rated power, speed, voltage, frequency, etc.
This document provides technical data for a Bauer flat gear motor (Typ: BF50) equipped with a single-disc spring pressure brake. The unit is designed for operation with static inverters in the frequency range of 120-50-60 Hz.
The specification sheet details the electrical and mechanical properties, including a rated power of 10.55 kW and a constant load torque of 1245 Nm. It also describes the specific configurations for the motor (DSEQ8MA4-TF-S) and the brake (ES 010 AQ), along with installation notes regarding alignment and wiring. This manual is written in German.
| Rated Power (KW) | 10,55 |
|---|---|
| Speed of AW (r/min) | 19,5 |
| Voltage | 380 VY |
| Constant Load Torque | 1245 Nm |
| Rated Current | 21,53 A |
| Brake Torque | 10,0 Nm |
Yes, it is suitable for operation with a static inverter.
The motor has a rated power of 10.55 kW.
The total reduction ratio is 72.72.
The motor operates at a voltage of 380 V.
