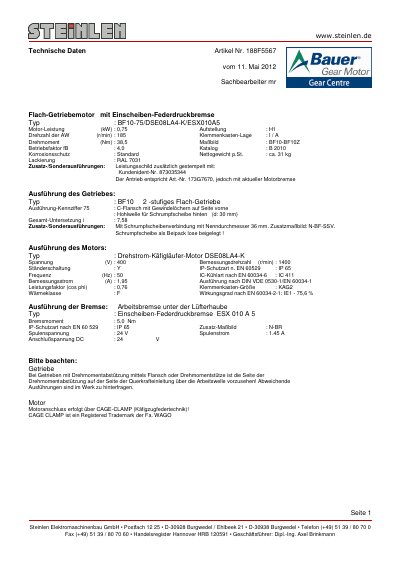

This document provides technical specifications of a Flach-Getriebemotor product named BF10-75/DSE08LA4-K/ESX010A5, including motor power, speed, torque, etc. It also provides installation and operation instructions for the product.
This document provides technical specifications for the Bauer flat gear motor, model BF10-75/DSE08LA4-K/ESX010A5. The unit is a two-stage flat gearbox coupled with a three-phase cage induction motor and a disc spring brake.
The motor is rated at 10.75 kW with a rated speed of 1400 r/min and a rated current of 21.95 A. It features an IP65 protection rating and an IC411 cooling class. The integrated brake has a braking torque of 5.0 Nm and operates on a 24V coil voltage. This manual is written in German.
| Motor Power | 10.75 kW |
|---|---|
| Rated Speed | 1400 r/min |
| Rated Torque | 38.5 Nm |
| Gearbox Ratio | 17.58 |
| Brake Torque | 5.0 Nm |
| Brake Coil Voltage | 24V |
| Protection Class | IP65 |
The motor has a rated power of 10.75 kW.
The total reduction ratio is 17.58.
The motor operates at a voltage of 400 V.
