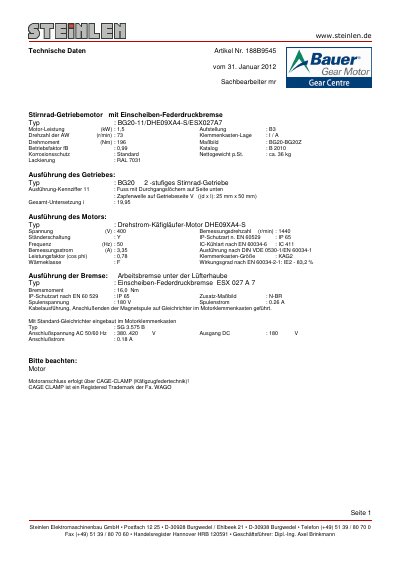

This document describes a Stirnrad-Getriebemotor produced by Steinlen Elektromaschinenbau GmbH, with the model number BG20-11/DHE09XA4-S/ESX027A7. The product has a motor power of 1.5 kW, a speed of 73 r/min, and a torque of 196 Nm. It is suitable for B3 installation. The product features a 2-stage spur gear transmission, with the motor model DHE09XA4-S, voltage of 400V, and rated speed of 1440 r/min. The product is also equipped with an Einscheiben-Federdruckbremse ESX 027 A 7, which has a braking torque of 16.0 Nm.
This document provides technical specifications for a Bauer Gear Motor, model BG20-11/DHE09XA4-S/ESX027A7. The unit is a two-stage spur gear motor equipped with a single-disc spring-applied brake and includes a built-in rectifier. This manual is written in German.
| Power | 21.5 kW |
|---|---|
| Speed | 73 r/min |
| Torque | 196 Nm |
| Reduction Ratio | 119.95 |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Current | 13.35 A |
| Efficiency | 83.2 % |
| Brake Torque | 16.0 Nm |
The motor has a rated power of 21,5 kW.
The two-stage gearbox has a total reduction ratio of 119,95.
The motor operates at a voltage of 400 V and a frequency of 50 Hz.
