BG80-11/D13LA4-TF-G-K/E075B9/SP is a gear motor with brake manufactured by Flender, Germany. The rated power is 9.5KW and the rated speed is 41.5r/min.

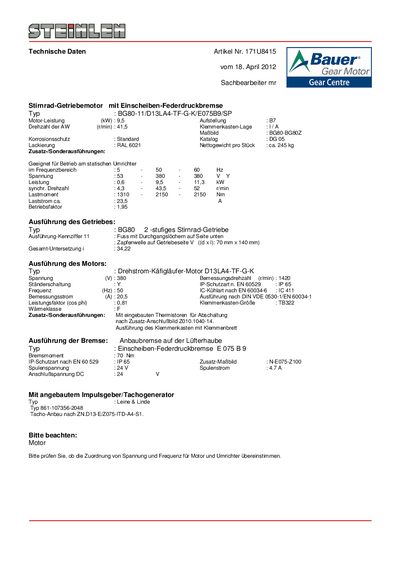

This document provides technical specifications for a Bauer Gear Motor, model BG80-11/D13LA4-TF-G-K/E075B9/SP. The unit is a two-stage spur gear motor equipped with a single-disc spring pressure brake (Type E 075 B9) and an integrated tachogenerator from Leine & Linde. This manual is written in German.
| Power (kW) | 29,5 |
|---|---|
| Speed (r/min) | 41,5 |
| Shaft dimensions (mm) | 70 x 140 |
| Total reduction ratio | 134,22 |
| Motor Type | Three-phase cage rotor motor D13LA4-TF-G-K |
| Voltage (V) | 380 |
| Rated speed (r/min) | 1420 |
| Protection class | IP65 |
| Brake Type | Single-disc spring pressure brake E 075 B9 |
| Brake torque (Nm) | 70 |
Yes, it is suitable for operation at a static converter in the frequency range of 15 - 50 - 60 Hz.
The rated current is approximately 20.5 A.
