This document describes the technical specifications of a Stirnrad-Getriebemotor product named BG60-31/DR11LA4C. The product features a 5.5 kW motor power, 109 r/min speed, 480 Nm torque, and other characteristics.

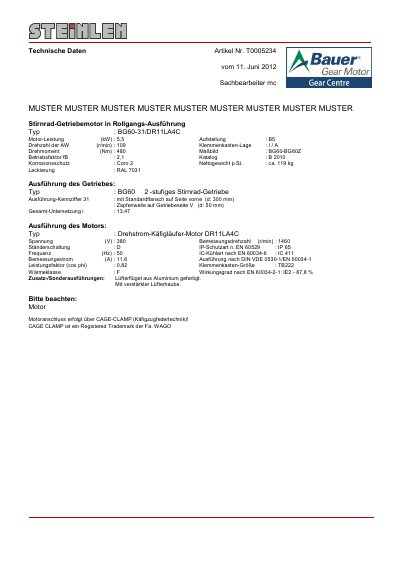

This document provides technical specifications for the Bauer Gear Motor model BG60-31/DR11LA4C. It is a two-stage spur gear motor in a roller bearing design, featuring a standard flange on the front side and a shaft on the gearbox side.
The integrated motor is a three-phase cage rotor type (DR11LA4C) with a rated power of 55.5 kW. Key specifications include a reduction ratio of 113.47, an output speed of 109 r/min, and a torque of 480 Nm. The motor operates at 380 V, 50 Hz, with an efficiency class IE2. This manual is written in German.
| Rated Power | 55.5 kW |
|---|---|
| Output Speed | 109 r/min |
| Torque | 480 Nm |
| Reduction Ratio | 113.47 |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Efficiency Class | IE2 - 87.8 % |
| Net Weight | ca. 119 kg |
The motor has a rated power of 55.5 kW.
The total reduction ratio is 113.47.
