BF50-63RL/DSE09XA4-TX-S/ES027A6/SP is a 2.2kW, 22.5r/min parallel shaft gear motor

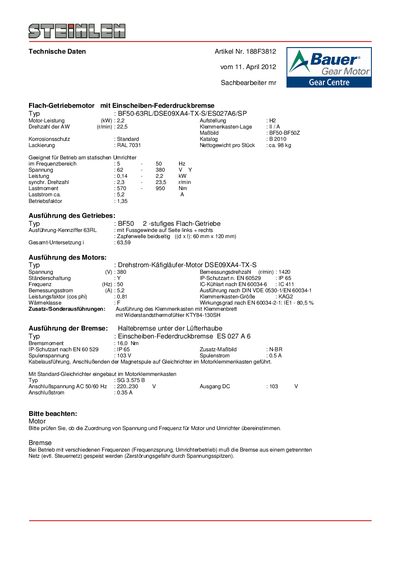

This document provides technical specifications for the Bauer flat gear motor with disc spring brake, Article No. 188F3812. The motor is designed for operation with static inverters in the frequency range of 15 - 50 Hz. This manual is written in German.
| Article Number | 188F3812 |
|---|---|
| Motor Power | 2.2 kW |
| Speed | 22.5 r/min |
| Voltage | 162 - 380 V |
| Power Range | 10.14 - 2.2 kW |
| Synchronous Speed | 12.3 - 23.5 r/min |
| Load Torque | 570 - 950 Nm |
| Load Current | 15.2 A |
| Operating Factor | 21.35 |
| Gear Type | 2-stage flat gear |
| Shaft Diameter | 60 mm |
| Total Reduction | 163.59 |
| Motor Type | Three-phase squirrel-cage motor |
| Motor Voltage | 380 V |
| Rated Speed | 1420 r/min |
| Protection Class | IP 65 |
| Rated Current | 5.2 A |
| Power Factor | 0.81 |
| Efficiency | 80.5 % |
| Brake Type | Disc spring brake |
| Brake Torque | 16.0 Nm |
| Brake Coil Voltage | 210.3 V |
| Brake Coil Current | 10.5 A |
| Rectifier Type | SG 3.575 B |
Yes, it is suitable for operation with static inverters in the frequency range of 15 - 50 Hz.
The motor has a protection class of IP 65 according to EN 60529.
The total reduction ratio is 163.59.
The brake must be supplied from a separate network (possibly control network) to avoid damage from voltage spikes.
