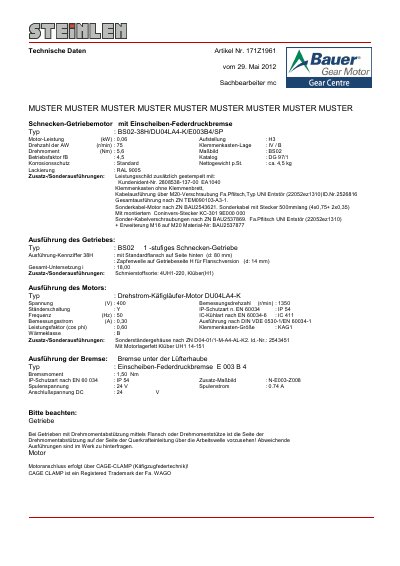

This document contains technical data for product number 171Z1961 dated May 29, 2012. The product is a worm gear motor with a single-disc spring pressure brake, model BS02-38H/DU04LA4-K/E003B4/SP. The motor power is 0.06 kW, speed is 75 r/min, and torque is 5.6 Nm. The product has special additional configurations such as customer identification number, terminal box without terminal board, and special cables.
This document provides technical specifications for the Bauer BS02-38H/DU04LA4-K/E003B4/SP, a worm gear motor equipped with a single-disc spring brake. The unit features a three-phase cage induction motor and is designed for specific mounting and electrical configurations. This manual is written in German.
| Rated Power | 0.06 kW |
|---|---|
| Rated Speed | 75 r/min |
| Torque | 5.6 Nm |
| Operating Factor | 4.5 |
| Net Weight | 4.5 kg |
| Gear Ratio | 118.00 |
| Voltage | 400 V |
| Rated Current | 0.30 A |
| Brake Torque | 21.50 Nm |
| Coil Voltage | 24 V |
The rated power is 0.06 KW.
It produces a torque of 5.6 Nm.
The total reduction ratio is 118.00.
