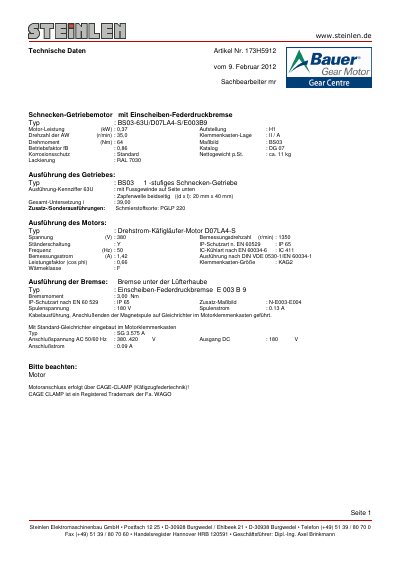

This document introduces a Schnecken-Getriebemotor produced by Steinlen Elektromaschinenbau GmbH. The model is BS03-63U/D07LA4-S/E003B9, with a motor power of 0.37 kW and a torque of 64 Nm. The product uses a 1-stage worm gear transmission and is equipped with Einscheiben-Federdruckbremse E 003 B 9. The motor type is Drehstrom-Käfigläufer-Motor D07LA4-S, with a rated voltage of 380V and a rated speed of 1350 r/min. It has an IP 65 protection rating.
This document provides technical specifications for a Danfoss Bauer Gear Motor, model BS03-63U/D07LA4-S/E003B9. The unit is a worm gearbox motor equipped with a single-disc spring brake (E 003 B 9). It features a three-phase cage rotor motor and includes an integrated rectifier. This manual is written in German.
| Power (KW) | 0,37 |
|---|---|
| Speed (r/min) | 35,0 |
| Torque (Nm) | 64 |
| Gearbox Type | 1-stage worm gearbox |
| Total Reduction Ratio (i) | 139,00 |
| Motor Type | Three-phase cage rotor motor |
| Voltage (V) | 380 |
| Frequency (Hz) | 50 |
| Rated Current (A) | 11,42 |
| Brake Type | Single-disc spring brake E 003 B 9 |
| Brake Torque (Nm) | 3,00 |
The motor has a rated power of 0.37 KW.
The total reduction ratio is 139.00.
The motor operates at a voltage of 380 V.
