This document is about the technical specifications of a Stirnrad-Getriebemotor with the model number BG30-11/DSE09XA4-TX-G/SP and a motor power of 2.2 kW. The product has a rotational speed of 166 r/min and a torque of 126 Nm.
This document provides technical specifications for the Bauer BG30-11/DSE09XA4-TX-G/SP gear motor. It details the mechanical characteristics of the two-stage spur gearbox and the electrical parameters of the three-phase squirrel-cage induction motor.

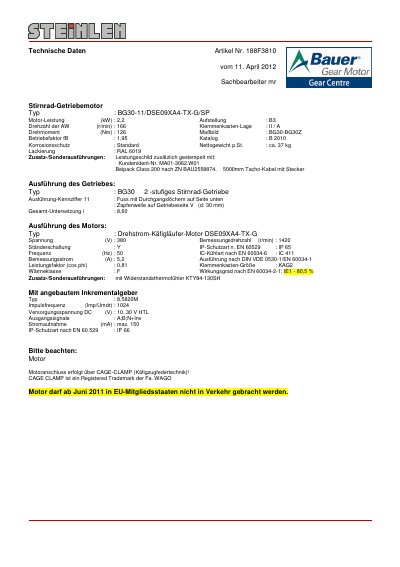

The data sheet includes specific information on the integrated incremental encoder, noting its pulse frequency and supply voltage requirements. It also lists compliance standards such as IP65 for the motor and IP66 for the encoder assembly. This manual is written in German.
| Power (kW) | 22,2 |
|---|---|
| Speed (r/min) | 166 |
| Torque (Nm) | 126 |
| Gear Ratio | 18,60 |
| Voltage (V) | 380 |
| Frequency (Hz) | 50 |
| Current Rating (A) | 5,2 |
| Efficiency (%) | 80,5 % |
| Pulse Frequency (Imp/Umdr) | 1024 |
The encoder assembly features an IP66 protection rating according to EN 60529.
The motor connection must be done using CAGE-CLAMP technology.
