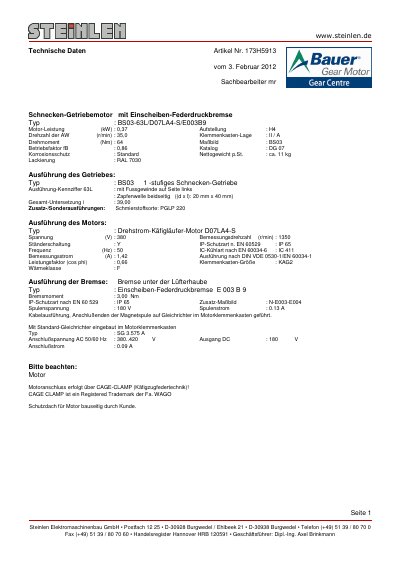

Bauer BS03-63L/D07LA4-S/E003B9 Gear Motor Technical Data
This document provides technical specifications for a Bauer Gear Motor, model BS03-63L/D07LA4-S/E003B9. The unit is a single-stage worm gear motor equipped with a single-disc spring pressure brake and includes an integrated rectifier. This manual is written in German.
Read onlineDanfoss D07LA4 specifications
| Power | 0.37 kW |
|---|---|
| Speed | 35.0 r/min |
| Torque | 64 Nm |
| Gear Ratio | 139.00 |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Current | 11.42 A |
| Brake Torque | 3.00 Nm |
| Coil Voltage | 1180 V |
Source: Bauer BS03-63L/D07LA4-S/E003B9 Gear Motor Technical Data
All Danfoss D07LA4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated power of this gear motor?
The motor has a rated power of 0,37 KW.
From: Bauer BS03-63L/D07LA4-S/E003B9 Gear Motor Technical Data
How many stages does the gearbox have?
This is a single-stage worm gear unit.
From: Bauer BS03-63L/D07LA4-S/E003B9 Gear Motor Technical Data
What is the rated power of the gear motor?
The motor has a rated power of 0.37 KW.
From: Danfoss Bauer BS03-63U/D07LA4-S/E003B9 Gear Motor Technical Data Sheet
What is the total reduction ratio of the gearbox?
The total reduction ratio is 139.00.
From: Danfoss Bauer BS03-63U/D07LA4-S/E003B9 Gear Motor Technical Data Sheet
