This is a 15kW electric motor produced by Steinlen Elektromaschinenbau GmbH. The motor uses a 35VA actuator with a rated power of 15kW and a rated speed of 22.5r/min.

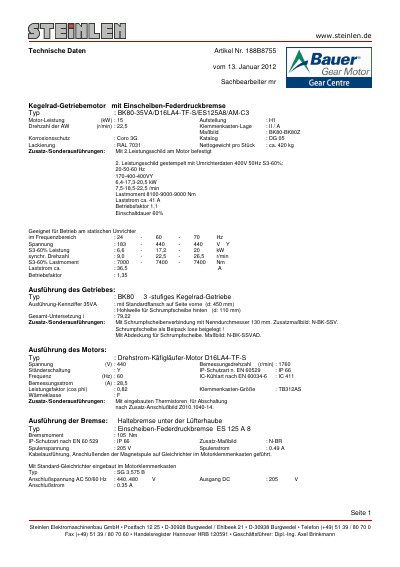

This document provides technical specifications for the Steinlen BK80-35VA/D16LA4-TF-S/ES125A8/AM-C3 Gear Motor. The unit is a cone gear drive motor equipped with a single-disc spring pressure brake (Type ES 125 A8) and an integrated rectifier (Type SG 3.575 B). It features a three-stage reduction ratio of 179.22. This manual is written in German.
| Motor Power (KW) | 215 |
|---|---|
| Rated Speed (r/min) | 22,5 |
| Reduction Ratio | 179.22 |
| Brake Torque | 105 Nm |
| IP Protection Class | IP 66 |
Yes, it is suitable for operation at a static converter.
The motor uses IC 411 surface ventilation according to EN 60034-6.
