This document is about the technical parameters of the BF40-04/DSE09SA4-K/ES010A8 flat gear motor, including motor power, speed, rated current, protection level and other information.

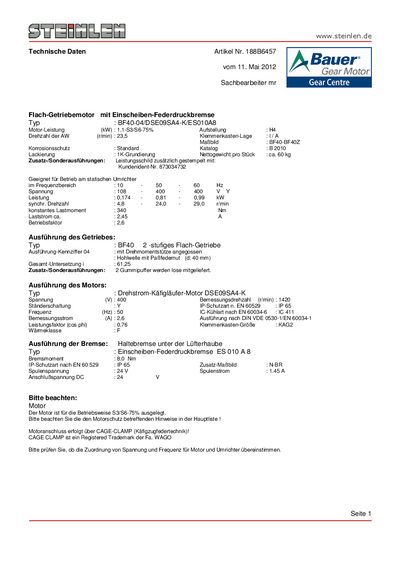

This document provides technical data for the Bauer Gear Centre model BF40-04/DSE09SA4-K/ES010A8. It is a flat gear motor equipped with a single-disc spring brake (holding brake) designed for operation at static inverters within a frequency range of 210 - 50 - 60 Hz.
The unit features a three-phase cage induction motor and includes specific details regarding voltage, power output, torque, and gear reduction ratios. The document also notes that the motor is rated for S3/S6-75% duty cycle operation. This manual is written in German.
| Power (KW) | 1,1-S3/S6-75% |
|---|---|
| Speed of AW | 23.5 r/min |
| Gear Type | BF40 2-stufiges Flach-Getriebe |
| Total Reduction Ratio | 161.25 |
| Motor Type | Drehstrom-Kafiglaufer-Motor DSEQ9SA4-K |
| Voltage (V) | 400 |
| Brake Type | Einscheiben-Federdruckbremse ES 010 A8 |
| Braking Torque | 18.0 Nm |
Yes, it is suitable for operation at a static inverter.
The motor is designed for S3/S6-75% operating mode.
